Accelerometer_H3LIS331DL

Accelerometer_H3LIS331DL

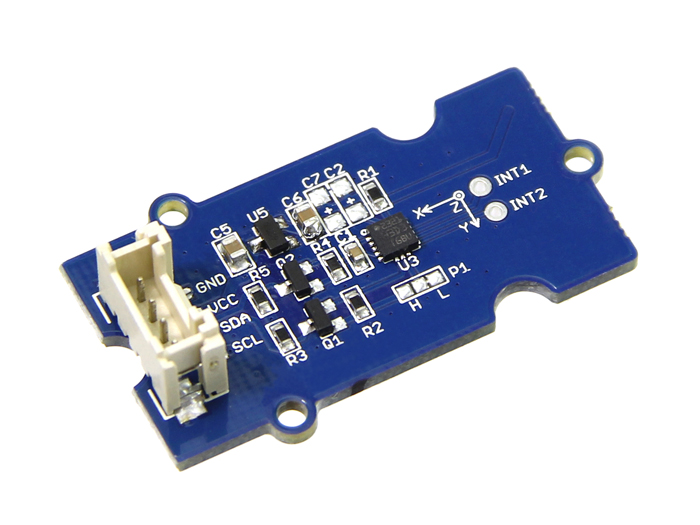

Grove - 3-Axis Digital Accelerometer(±400g)

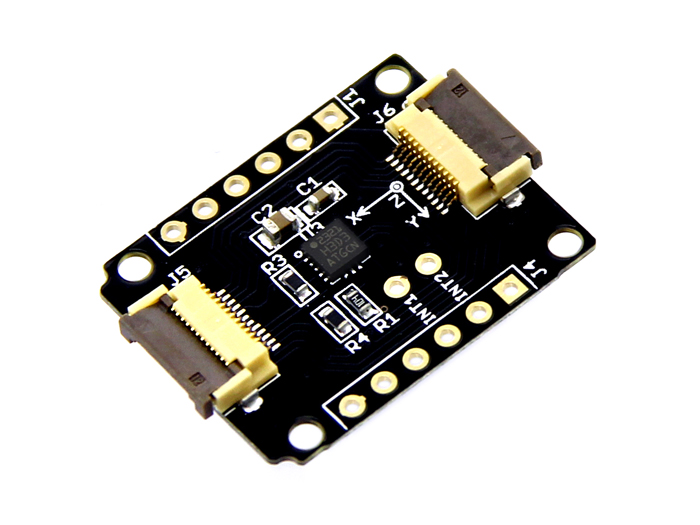

Xadow - 3-Axis Digital Accelerometer(±400g)

Xadow - 3-Axis Digital Accerometer(±400g)

The H3LIS331DL is a low power high performance 3-axis linear accelerometer belonging to the “nano” family, with digital I2C serial interface standard output. The device features ultra low power operational modes that allow advanced power saving and smart sleep to wake-up functions. The H3LIS331DL has dynamically user selectable full scales of ±100g/±200 g/±400 g and it is capable of measuring accelerations with output data rates from 0.5 Hz to 1 kHz. For more information, you can visit our wiki grove_3_Axis_Digital_Accelerometer_H3LIS331DL and xadow_3_Axis_Digital_Accelerometer_H3LIS331DL

Features

• Ultra low power mode consumption down to 10 µA
• ±100g/±200g/±400gdynamically selectable full scale
• 16-bit data output
• 10000g high shock survivability

Applications

• Shock detection
• Impact recognition and logging
• Concussion detection

Getting Started

please follow the example sketch(H3LIS331DL_AdjVal and H3LIS331DL_Demo). Have fun!

---

This software is written by lawliet zou () for Seeed Technology Inc. and is licensed under The MIT License. Check License.txt/LICENSE for the details of MIT license.

Contributing to this software is warmly welcomed. You can do this basically by
forking, committing modifications and then pulling requests (follow the links above
for operating guide). Adding change log and your contact into file header is encouraged.
Thanks for your contribution.
